Nurse Call System
Nurse Call System
Instant Patient assistance
We Provide Both Wired and Wireless Nurse Call System.
Benefits of Gaddiel Nurse Call System
VX Model of Nurse Call System

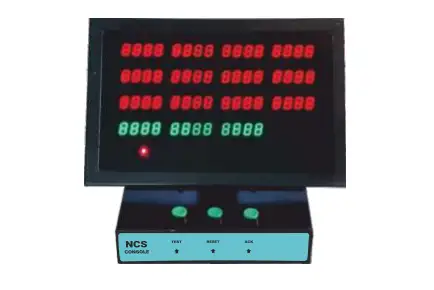

GADDIEL CENTRAL DISPLAY UNIT
• Display realtime data with bed number on display
• Display mulit color 7seven sagment size(0.5″ R,G,B)
• Voice alerts in call
• TEST, RESET, ACKNOWLED KEYS.
• TEST Button : On presssing the button it will flashall the display
windows will make sure that the device is working fine.
• RESET Button :All data cleared.
• ACK Button : it is for acknowledging a call from patient. lt will
make the flashing window steady and also silences the voice
module until a call is cleared.
• Connected by a 2 wire connector with the HUB
• Dimension : 310x40x205mm(LWH) TABLE TYPE / WALL
HANGING
• Power : 230V AC
• Weight : 3.5 Kg
• Material : Powder Coated MS Enclosure with vinyl/PVC sticker

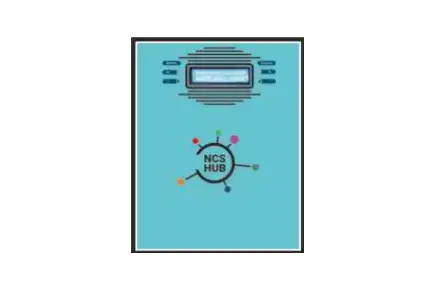

GADDIEL HUB UNIT
• Desingned around a micro controller to interfase with 16 bed unit
with nurse station console.
• Use a LCD DISPLAY 16×2 green backlight show the module status.
• Use a terminal strip for easy connection all module.
• Connected by a 4 wire connector with the DI,BCU,TUC
• Dimension : 205 x 60 x 255mm Vertical (LWH) WALL MOUNT
• Material : Powder Coated MS Enclosure with vinyl/PVC sticker

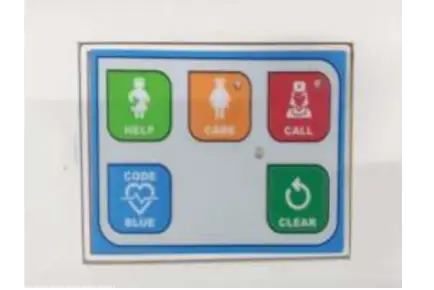

GADDIEL BED CALLING UNIT
• A Micro Controller Device Which Controls All The Modules of a Room
Door Indicator Toilet Calling Unit Which Reports It to The Nurse
Calling Station Which Forward it.
• It has 5Feather Prees Keys HELP, CARE, CALL, CODE BLUE, CLEAR.
• The unit is designed with soft keyped consisting of one key for CALL
initiation
• The unit is designed with soft keyped consisting of one key for CALL
initiation and the other for CLEARING the call which is generally
done by the Nurse attending the patient.
• CODE BLUE feature.
• Uses a three Modular Electrical Switch Outlet.
• It is Less then 500m Watts. 24vdc
• Connected by a 4 wire connector with the DI
• Wire connection 4 pin push connector for incoming /outgoing wire
• Dimension : 111 x 30 x 80mm (LWH)
• Material : Plastic Enclosure

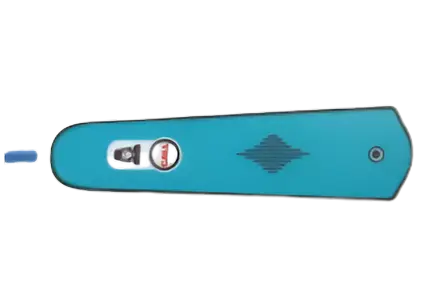

GADDIEL PATIENT HAND SET
• Housed in high impact resistant. fluid protected
plastic enclosure.
• Patient press call buttion from handset unit.
• One switch which is intigrated with Bedside Caling
Unit to Initiate the Call.
• Remote wire 1Meter inside the fix.
• Dimension : 30x22x40 (LWH)
• Material : Plastic Enclosure.

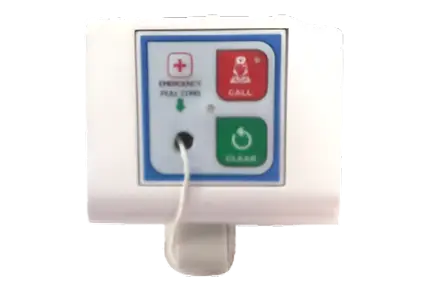

GADDIEL TOILET CALLING UNIT
• It has 3Feather Prees Keys CALL, CLEAR, PULL CORD
• It has a pull cord system to trigger a call the Nursing
station and the door indicator.
• Pull cord nylone twisted rope (dori)
• Uses a Two Modular Electrical Switch Outlet.
• It is Less then 500m Watts. 24vdc
• Connected by a 4 wire connector with the BCU
• Dimension : 90 x 30 x 80mm (LWH)
• Material : Plastic Enclosure

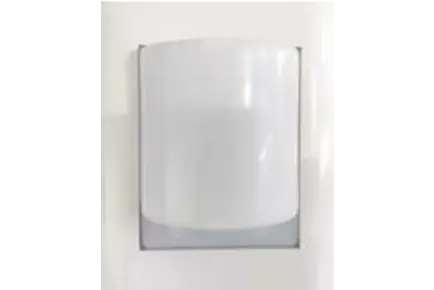

GADDIEL DOOR INDICATOR
• Wall mountable type semi- circular shaped indicator makes
use of super bright LEDs to indicate the patient’s call at the
passage /corridor.
• Three different colors LED’s to indicate different type of
emergency.
• Uses best quality plastic for better vision in the passage.
• Uses a three Modular Electrical Switch Outlet.
• Operateable on very low power consumption.
• It is Less then 1.5 Watts. 24vdc
• Connected by a 4 wire connector with the HUB.
• Dimension : 111 x 30 x 80mm Vertical (LWH)
• Material : Plastic Enclosure
LX Model of Nurse Call System

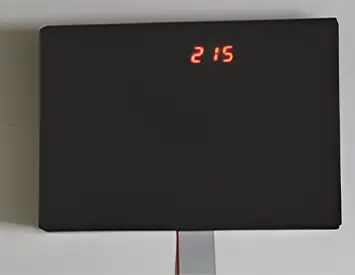

CENTRAL DISPLAY UNIT WITH DATA PROCESSOR & CONTROL UNIT
Central Display Unit & Control Unit installed at Nurse Call Station. All the connections are madeat the Control Unit. The Display Unit can be put on the Control Unit as shown in the picture or can be hang on the wall. If simultaneously more than one patient call at a time then all the numbers will be displayed on the Display Unit & g resetafterall the Callsare attended. It comes in differentbed modules.

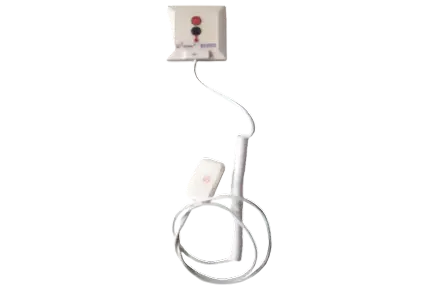

BEDSIDE CALLING UNIT WITH ATTACHED PATIENT HANDSET
Bedside Unit is installed on the wall near to patient’s Bed. A wired Handset is connected to Bed Unit & placed on patient’s Bed. Whenever Patient wants to call the nurse, he presses the Red Button provided on Handset. The LED on the Bed Unit turn RED indicating patient has pressed the CALL button.

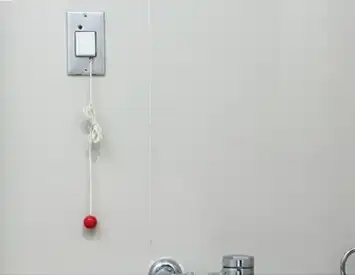

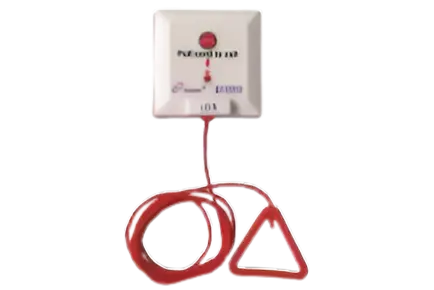

GADDIEL TOILET EMERGENCY CALLING UNIT WITH PULL CORD
It is similar to Bedside Calling Unit only difference is that it contains a Pull Cord in place of Patient Handset. It is installed in toilet. If patient get stuck in toilet & require help of nurse or house-keeping staff, he has just to pull the Pull Cord. Call will be registered at Nursing Station.

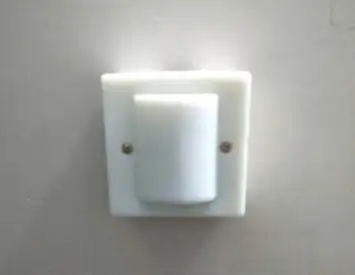

GADDIEL DOOR INDICATION UNIT
Door Indicator or Corridor Light is installed outside the Door of the Patient Room. By default it glow BLUE 24 hrs 365 days. When the patient Calls the Nurse the particular Door Indicator turns into RED. The advantage of the Door Indicator is that nurse can acknowledge the call in the corridor itself. When nurse attend the Call & RESET the call Door Indicator, it again turn into BLUE.
Wireless Nurse Call System

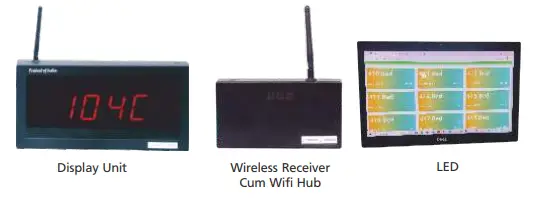

CANTER DISPLAY
Central Display Unit – 10″ Touch ScreenTablet / LCD / Smart TV 21 – 40″ with Signal Receiver Cum Wifi Hubspot. Signal Receiver Cum Hub connect to LCD / Smart TV through its own Wifi. It will receive signals from Bedside Calling Unit/ Toilet Emegency Calling Unit & will show it on Tablet / Smart TV. Bedside calling Unit’s / Toilet Emegency Unit’s call will be displayed on Smart TV with Audible & Visual Indications with necessary interfaces and regulated power supply and connections, interconnections etc. as required. It is operated on 12V DC. In Wireless system , Signals signal pass on allowed frequency

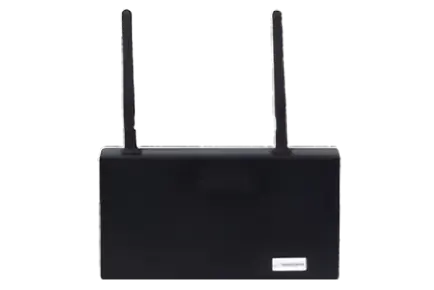

SIGNAL BOOSTER / REPEATER
Signal Booster / Repeater increase the range of communication between Central Display Unit & Bedside Calling Unit / Toilet Unit, It works on the same frequency as of central display Unit & Bedside calling Unitv/ Toilet Unit. It runs on 12V DC.

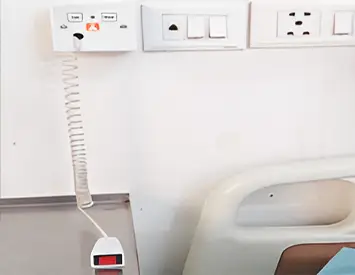

BEDSIDE CALLING UNIT WITH PATIENT HANDSET
Bedside Calling Unit Mountable directly on the Wall / Bed Head Panel, having 2 Buttons CALL & RESET (4 Buttons in case of Additional Help & Code Blue) & having 1 LED indication for call Status, having connections etc as required with attached 3 feet long spiral Cord having Push button switch module which is called Patient Hanset & remains on Patients Bed. complete as required. It is powered by cell.
TOILET EMERGENCY CALLING UNIT WITH ATTACHED PULL CORD
Toilet Emergency Calling Unit (wireless) Mountable directly on the wall, having 2 Buttons – CALL & RESET, having 1 LED indications for call Status and having connections etc as required with 4 feet long Pull Cord complete. It is powered by cell.

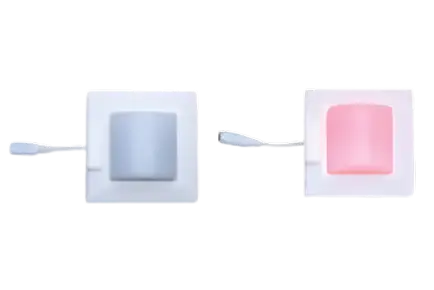

DOOR INDICATOR
Door Indicator (Dome Type) on Door of room mountable directly on the wall complete with lamp & all necessary card and connector etc. including power supply & connections as required. It is operated on 12V DC
